Vibration Isolations
for CubeSat POD
With increasing demand for the advanced missions, the sizes of CubeSats and payloads are continuously increased. Also, complex and sensitive payloads are being adopted.

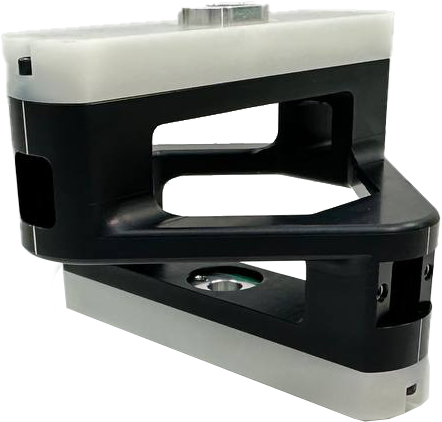

Our vibration isolator product mounted underneath the POD effectively attenuates entire launch vibration and shock loads, thus ensures safe launch of the Customer’s CubeSats
Highlighted Features & Advantages
Whole Satellite Isolation
Launch vibration isolation of the entire CubeSat enables availability of applying sensitive payloads with minimal design efforts.
Environment Mitigation
Technical Specifications
| Application | CubeSat POD (16U POD) - Products in development for other sizes of the POD |
| No. of Isolator Mounts | 4 EA |
| Isolator Size | 90 mm × 90 mm × 80 mm (per ea) |
| Isolator Mass | ≤ 0.15 kg (per ea) |
| Available Support Mass | ≤ 42 kg (16U CubeSat + POD, supported by 4 mounts) |
| Isolation Cut-off Freq. | ≥ 40 Hz (can be changed depends on customer’s need) |
| Vibration Attenuation Performance | ≥ 3.5 times reduction w.r.t. vibration input |
